Install Factory Bracket


Remove the factory transmission hanger support from the car. Remove the factory transmission mount from the hanger support. Remove the factory transmission mount adapter bracket (see red arrow) from the factory mount and using the two supplied M8 x 55mm bolts and 8mm flat washers, attach to the Ultra Transmission Mount as shown and tighten.

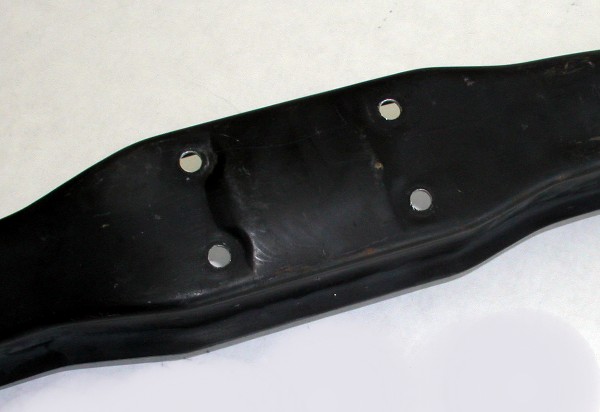

Drill Factory Transmission Hanger Support


The 4 main attaching bolts on the Ultra Transmission Mount are 10mm. The original were 8mm. So will be required to enlarge the holes for the 10mm bolts in the steel transmission hanger.

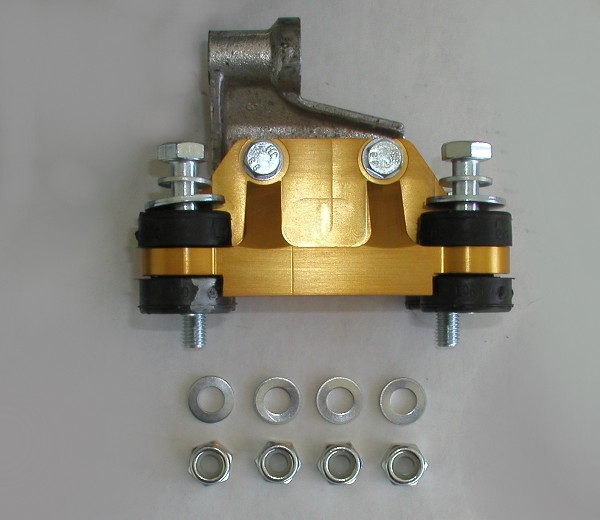

Order of Hardware


Remove the 4 lock nuts and 4 flat washers from the 10mm bolts. The mounts come pre-assembled (loosely) and the order of the bolts and washers should remain the same. But here we see how things stack up.



Position


Place the mount inside the steel transmission hanger as shown. Make sure the orientation of the adapter bracket is the same as originally positioned. A 10mm flat washer and lock nut are placed on the outside of the hanger as shown. The other hardware remains stacked up just like you see in the above pictures. Tighten securely the 10mm lock nuts.
