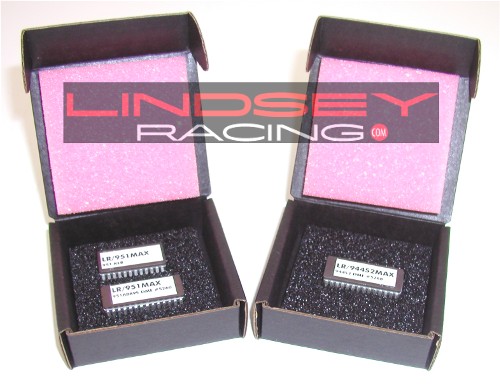

Shop LR / MAX PERFORMANCE

LR / MAX PERFORMANCE CHIPS



Lindsey Racing has teamed up with MAX's Russell Berry to bring you the best chip sets for your 944 Turbo, 944, 944S, 944S2 and 968. Together, we have further advanced his chip sets by doing dyno and real world testing.

951 CHIPS


It's not enough create the chips and measure the performance on the dyno. We go further than that. Further than anybody else does. From there, we do "real world" testing and final adjustment. You see... the car does not act the same on the dyno as it does on the street or track. The loading is too different between the two. So we have on board data logging capability to measure A/F Ratio, MAF Voltage, TPS, RPM, Vac/Boost, Ignition Timing, Acceleration, Exhaust Pressure and Injector Duty Cycle. We can fine tune the chips beyond anything that can be done on the dyno because we can seek out and find those areas that don't appear there. Since you don't drive or race your car on the dyno, we're sure you can appreciate and benefit from that fact.

These same chip sets are now supplied with all Lindsey Racing performance packages such as our 278 or 340 RWHP kits or larger custom tailored kits. These chips when used with our kits have taken almost all the tuning out of the equation. Kits using our Mafterburner or Power Perfect fuel controller will only require fine tuning. This is because there are mechanical differences between one engine and another, electronic differences such as MAF meter calibration and differences in actual injector flow which will likely make fine tuning required.

Below you see a dyno-jet dyno chart from a 1989 Turbo S producing 278 RWHP and an amazing 339.3 Ft. Lbs. of torque at 20psi of boost with 93/94 octane pump gasoline.

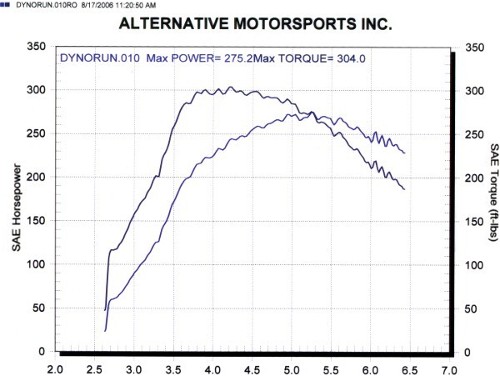

The same chip set made 275.2 RWHP and a very impressive 304 Ft. Lbs. of torque at 15.5 psi of boost on the same fuel. You could use a lesser octane at this level.



Modifications on the car was limited to a 3" exhaust, a Lindsey Racing Boost Enhancer, and a shimmed wastegate.

When we added a 4" exhaust and Dual Port Wastegate, the performance was even greater producing 304 RWHP and 345 Ft. Lbs of Torque.



944S2 CHIP


The 944S2MAX chip is designed to enhance your driving experience. Factored in are characteristics of the 3.0L 16 Valve engine and driver input, along with Dyno testing to provide a better power band and smoother performance. From idle to full throttle this chip provides clearly better performance above stock chips with an average power gain of 8-10RWHP.

944S CHIP


The new 944SMAX chip is designed to enhance your driving experience. We have factored the characteristics of the 2.5L 16 Valve engine and driver input, along with Dyno testing to provide a better power band and smoother performance. From idle to full throttle this chip provides clearly better performance above stock chips with an average gain of 4-6RWHP.

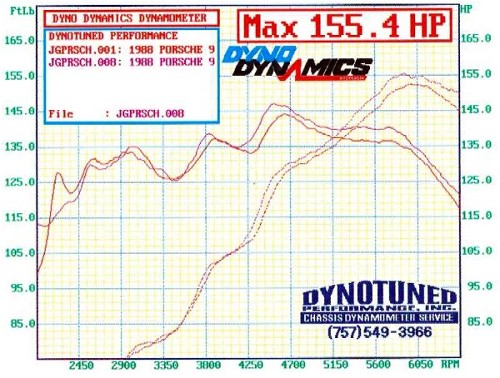

The chart shows the stock chip versus the LR/944SMAX chip.

On the dyno we gained 5HP over stock, but you can easily see that the torque curve comes in 100 RPM sooner and 2Lbs higher at 3500-4000 rpm, and holds again 4Lbs higher at over 200 rpm sooner from 4000 rpm to peak at 4500 rpm, 200 rpm before stock peak. From there the torque curve holds 4-6Lbs over stock all the way to redline. The run was to 6500 rpm but this chart only shows to 6050 for some reason, but you can see as the HP and TQ lines are leaving the chart they are spreading even farther from stock to redline. You will have 5-6Lbs. of torque over stock to redline. This car doesn't run out of steam.

944 '85/2-'88 CHIP


This fits the 944 8v 2.5L engine found in the '85/2 and later 944 and the '87-'88 924S.

Below is a chart from a completely stock 1987 944NA 2.5L 8v. The Red/Blue lines are stock, the black and green our 944 MAX chip. The chart shows a peak gain of 7RWHP, but note the TQ from 4400 to 6000 RPM. In this area you see as much as 12RWHP over stock. This further illustrates peak numbers aren't everything, area under the curve is what it's all about.



944 89 2.7L


Now available and shipping!

968 CHIP


The new 968MAX chip is designed to enhance your driving experience. We have factored the characteristics of the 968 engine and driver input, along with Dyno testing to provide a better power band and smoother performance. From idle to full throttle this chip provides clearly better performance above stock chips with an average power gain of 10-18RWHP.

Refer to our Tech Garage to for chip installation instructions.

Top

INTERNATIONAL ORDERING



TO OUR INTERNATIONAL CUSTOMERS:


In the past, we have used a separate order form for placing International orders. We have quit using that process and are requiring all customer to use the shopping cart system built into the web site and it's check out process.

If you simply want a quotation and are not ready to place an order, then cut and paste the contents of your shopping basket, take a screen shot of the basket, or make a list of items and send us a email requesting a quotation with shipping.

If you need shipping prices before you make your final decision to purchase, then you should request that quotation by email and not use the shopping cart checkout process because you will be paying for the parts at that time.

Since our shopping cart and shipping estimator will "NOT" correctly calculate shipping charges on International Orders, we have it set-up to where the shipping will be Zero Dollars ($0.00) when checking out. When the shopping carts address process learns you are not in the United States by selecting your particular country, that's when it switches to equal Zero. That does NOT mean shipping is free.

Upon completion of the check out process, you will have paid for your parts but NOT the shipping on those parts.

Once we look over your parts ordered and calculate shipping weights and box sizes, we will send you an E-Mail with at least one shipping option and maybe several. We utilize UPS, DHL and the United States Postal Service (USPS) to deliver your parts.

Once you pick a shipping carrier and agree to the quotation by returning the E-Mail, we will be sending a PayPal money request for the amount of the shipping to be collected. If the parts are expected to be shipping out quickly, then you may receive that email quickly. If the parts are going to need to be built or something is on back order from the list of parts, we may hold off sending that E-Mail until we have the shipment ready to go. It can vary from order to order as to how we do that. If you think you should be hearing from us quickly, but you don't, feel free to contact us.

If you have special shipping needs or requirements, during the checkout you will see a SPECIAL ORDER INSTRUCTIONS window. Enter that special information there.

A good bit of our business is International and we have been taking care of those valued customers since 1999.

Top

TURO LEVANEN

'88 944 TURBO S 3 Liter Street Legal Track Racer!

This car is the only one driven both daily on the street and in the Nordic Porsche Sports Cup series.





Engine Mods Include:

3 Liter 968 block bored to 105 mm
LR 65 Turbocharger (LR)
3” to 5” exhaust (LR)
Stainless steel 3” downpipe (LR)
Sport headers (LR)
Catcam cam
Link engine management and all new electrical wiring
Old mechanical rotor ignition changed to coil pack / EMS / digital ignition with new TDC measuring
Flex fuel for 85 ethanol to 98 gas--all mixtures go
Head with 48 mm intake valves
Comet 3 layer head gasket (LR)
140# valve springs (LR)
5 angle seat grind
Larger Intercooler with aluminum hardpipes w/ silicone hoses
LR silicon water hoses
LR fuel rail with 92 lb injectors
Intake Manifold – extrude honed and polished
Racing fuel pump with new hoses
Tial 38mm wastegate
Solenoid over boost controller. Two programs (1.0-1.3 bar). 400 hp-500 hp
Wössler pistons (105 mm 8.5:1 compression) LR
Pauter con rods LR
Light battery in race mount and cut-off switch
Silicon vacuum lines LR
Rod bearings, main and balance shaft bearings Calico metal coated
Oil Pan and Balance Shafts Reseal
Recent radiator, water pump, rollers, belts etc. new – Gates Kevlar/Blue Timing belt
Approx. max horsepower 480 rwhp with 720 Nm torque (531 ft/lb) with substantial dyno hours


Driveline/Transmission:

SPEC Stage 3 Clutch LR
Heavy duty motor mounts
Heavy duty trans. mounts
Recent Clutch Master/Slave with hoses
Heavy duty drive shafts LR
Torque tube with heavy duty bearings
Quaife mechanical differential
All wheel and drive shaft bearings new
All bushings non-OEM


Brakes:

GT3RS 997 brakes and 350 mm slotted and cross drilled rotors
Turbo s rear brakes
Brake bias valve changed


Suspension:

Koni Sport Front
Koni Series 30 racing rear
Front 500 lbs coil springs
Rear 900 lbs coil springs
Adjustable front camber plates
M035 sway bars LR
Elephant Racing Polybronze spring plate bushings
Poly bushings everywhere else
Front solid bushing ball joint kit
Strut tower bar
Lower caster block bar
New front and rear wheel bearings
Recent race alignment and corner balance


Body:

Front/Rear tow hooks
Fire extinguisher system in cabin and engine bay
Fender flares
GT3 front splitter
Rear diffuser in process
968 rear lights and bumper carbon fibre
Sunroof removed (GT parts)
997 gt2 rear wing
Glass fibre hood
Plastic rear window


Interior:

Sparco/GT3 Speed Seats (R & L) in black
Porsche GT3 Steering Wheel and hub
Sparco 6pt cam lock harnesses (R & L)
Geiko racing approved gauge
Stock seat belts remain functional
Track Mats, steel plates and Lightened pedals aluminum
Extra long shifter stick and short shifter
Electrical boost control 2 programs – center console
A/F meter-center console
Fuel pressure meter
Boost meter
Racing “kill” switch in cabin
Full fire ext. system cabin and engine bay with external switch
Back seat delete
