BILSTEIN "ESCORT CUP" COIL OVER SUSPENSION



Lindsey Racing has pulled together all the pieces to offer their complete Bilstein Escort Cup Car Suspension Kit for your 944 '87-'89, 944S, 944S2, 944 Turbo or 968.



We offer this kit in four different configurations.

First you have the choice of different Front Strut valving options (380/150 (Street/Track) or 600/190 (Track). Then with either of those valving choices, you can then get the kit with or without adjustable camber plates.

Front Struts and Rear Shocks utilize 2-1/4" ID Coil Springs. Lindsey Racing offers the Hypercoil brand of Coil Springs. We can help you determine spring rates based on application and whether or not you are going to use or retain the rear torsion bars.

This kit can be used with our Lindsey Racing Adjustable Camber Plates (as well as others). If using our camber plates, the you don't need a upper spring hat as it is built into our camber plates. If you want to use the stock/original upper strut mount, you will need our Lindsey Racing 2-1/4" Spring Hats. Some other camber plates may also require our spring hats.

Escort Kit #01 Includes:


  • Bilstein Left Front Strut valved 380/150
  • Bilstein Right Front Strut valved 380/150
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #02 Includes:


  • Bilstein Left Front Strut valved 600/190
  • Bilstein Right Front Strut valved 600/190
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #01CP Includes:


  • Bilstein Left Front Strut valved 380/150
  • Bilstein Right Front Strut valved 380/150
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"
  • Lindsey Racing Camber Plates

Escort Kit #02CP Includes:


  • Bilstein Left Front Strut valved 600/190
  • Bilstein Right Front Strut valved 600/190
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"
  • Lindsey Racing Camber Plates

BILSTEIN "ESCORT CUP" COIL OVER SUSPENSION



Lindsey Racing has pulled together all the pieces to offer their complete Bilstein Escort Cup Car Suspension Kit for your 944 '87-'89, 944S, 944S2, 944 Turbo or 968.



We offer this kit in four different configurations.

First you have the choice of different Front Strut valving options (380/150 (Street/Track) or 600/190 (Track). Then with either of those valving choices, you can then get the kit with or without adjustable camber plates.

Front Struts and Rear Shocks utilize 2-1/4" ID Coil Springs. Lindsey Racing offers the Hypercoil brand of Coil Springs. We can help you determine spring rates based on application and whether or not you are going to use or retain the rear torsion bars.

This kit can be used with our Lindsey Racing Adjustable Camber Plates (as well as others). If using our camber plates, the you don't need a upper spring hat as it is built into our camber plates. If you want to use the stock/original upper strut mount, you will need our Lindsey Racing 2-1/4" Spring Hats. Some other camber plates may also require our spring hats.

Escort Kit #01 Includes:


  • Bilstein Left Front Strut valved 380/150
  • Bilstein Right Front Strut valved 380/150
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #02 Includes:


  • Bilstein Left Front Strut valved 600/190
  • Bilstein Right Front Strut valved 600/190
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #01CP Includes:


  • Bilstein Left Front Strut valved 380/150
  • Bilstein Right Front Strut valved 380/150
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"
  • Lindsey Racing Camber Plates

Escort Kit #02CP Includes:


  • Bilstein Left Front Strut valved 600/190
  • Bilstein Right Front Strut valved 600/190
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"
  • Lindsey Racing Camber Plates

BILSTEIN "ESCORT CUP" COIL OVER SUSPENSION



Lindsey Racing has pulled together all the pieces to offer their complete Bilstein Escort Cup Car Suspension Kit for your 944 '87-'89, 944S, 944S2, 944 Turbo or 968.



We offer this kit in four different configurations.

First you have the choice of different Front Strut valving options (380/150 (Street/Track) or 600/190 (Track). Then with either of those valving choices, you can then get the kit with or without adjustable camber plates.

Front Struts and Rear Shocks utilize 2-1/4" ID Coil Springs. Lindsey Racing offers the Hypercoil brand of Coil Springs. We can help you determine spring rates based on application and whether or not you are going to use or retain the rear torsion bars.

This kit can be used with our Lindsey Racing Adjustable Camber Plates (as well as others). If using our camber plates, the you don't need a upper spring hat as it is built into our camber plates. If you want to use the stock/original upper strut mount, you will need our Lindsey Racing 2-1/4" Spring Hats. Some other camber plates may also require our spring hats.

Escort Kit #01 Includes:


  • Bilstein Left Front Strut valved 380/150
  • Bilstein Right Front Strut valved 380/150
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #02 Includes:


  • Bilstein Left Front Strut valved 600/190
  • Bilstein Right Front Strut valved 600/190
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #01CP Includes:


  • Bilstein Left Front Strut valved 380/150
  • Bilstein Right Front Strut valved 380/150
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"
  • Lindsey Racing Camber Plates

Escort Kit #02CP Includes:


  • Bilstein Left Front Strut valved 600/190
  • Bilstein Right Front Strut valved 600/190
  • Bilstein Rear Shocks "Pair" valved 565/218
  • Hypercoil 2.25" ID Front Coil Springs
  • Hypercoil 2.25" ID Rear Coil Springs
  • Lower Spring Perch & Locking Ring "Set of 4"
  • Lindsey Racing Camber Plates
Product Image
Product Name
Pricing
Qty
BILSTEIN ESCORT CUP SYSTEM #01 944T ALL / 944 ALL from '87 / 968
Part# LRK-944-BIL-SUS-01

Cart Qty: None

Ship Weight: 45.00


FRONT SPRING RATE:
REAR SPRING RATE:
SPRING HATS FOR STOCK CAMBER PLATE:
HELPER SPRING & SEPARATOR:
SPANNER WRENCH:
$2,995.00

BILSTEIN ESCORT CUP SYSTEM #01CP 944T ALL / 944 ALL from '87 / 968
Part# LRK-944-BIL-SUS-01CP

Cart Qty: None

Ship Weight: 50.00


FRONT SPRING RATE:
REAR SPRING RATE:
SPRING HATS FOR STOCK CAMBER PLATE:
HELPER SPRING & SEPARATOR:
SPANNER WRENCH:
$3,445.95

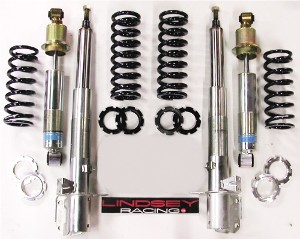

BILSTEIN ESCORT CUP SYSTEM #02 944T ALL / 944 ALL from '87 / 968
Part# LRK-944-BIL-SUS-02

Cart Qty: None

Ship Weight: 45.00


FRONT SPRING RATE:
REAR SPRING RATE:
SPRING HATS FOR STOCK CAMBER PLATE:
HELPER SPRING & SEPARATOR:
SPANNER WRENCH:
$2,589.80

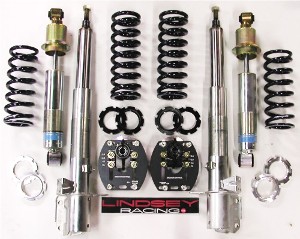

BILSTEIN ESCORT CUP SYSTEM #02CP 944T ALL / 944 ALL from '87 / 968
Part# LRK-944-BIL-SUS-02CP

Cart Qty: None

Ship Weight: 50.00


FRONT SPRING RATE:
REAR SPRING RATE:
HELPER SPRING & SEPARATOR:
SPANNER WRENCH:
$3,040.75

2.25 INCH SPRING HAT (Pair) 944 ALL / 968
Part# LRA-HAT-101

Cart Qty: None

Ship Weight: 1.00


$146.95

2.25 INCH HELPER SPRING PAIR
Part# LA-HELPER-225

Cart Qty: None

Ship Weight: 1.00


$99.95

2.25 INCH SPRING SEPARATOR PAIR
Part# LA-SPACER-225

Cart Qty: None

Ship Weight: 0.20


$39.95

ESCORT STRUT LH valved 600/190 944T ALL / 944 ALL from '87 / 968
Part# BIL-AK-1120

Cart Qty: None

Ship Weight: 10.00


$570.95

ESCORT STRUT RH valved 600/190 944T ALL / 944 ALL from '87 / 968
Part# BIL-AK-1121

Cart Qty: None

Ship Weight: 10.00


$570.95

ESCORT REAR SHOCK valved 565/218 944T ALL / 944 ALL from '87 / 968
Part# BIL-AK-37354

Cart Qty: None

Ship Weight: 4.50


$563.95

SPRING SEAT BEARING KIT
Part# 999-343-006-K1

Cart Qty: None

Ship Weight: 0.25


$74.95

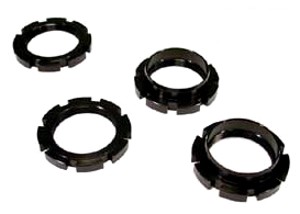

SPRING PERCH KIT 2-1/4 INCH
Part# L-944-343-009-K1

Cart Qty: None

Ship Weight: 1.00


$79.95
