INTRAX SUSPENSION


Cart Qty: None   Ship Weight: 50.00

Cart Qty: None   Ship Weight: 50.00

INTRAX SUSPENSION 996

"4-WAY"
"Top Off The Range, Highly Advanced Modular Mono Tube Damper"

This is a professional set and will help driver to find set-ups for all kind of conditions.

The 4-way is a top of the line product. The low-speed compression, high-speed compression and rebound damping is separately adjustable. The low-speed compression damping controls the front-rear and left-right movements of the car ("pitch" and "roll"). The high-speed compression controls the movement of the wheels over sharp bumps, like marbles and curb stones. The rebound damping controls the body movements and absorbs unwanted energies, which otherwise would unsettle the car.



Adjustable:
  • Low-speed compression damping base-adjustment.
  • Low-speed compression damping range-adjustment in 16 positions.
  • High-speed compression range-adjustment in 50 positions.
  • Rebound damping-range in 50 positions.
  • Spring-preload fully adjustable.
Other features:

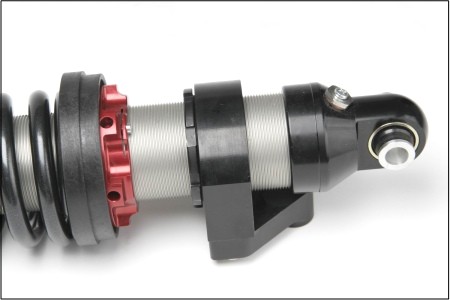

  • Mono-tube damper construction.
  • Pressurised nitrogen reservoir; piggy-bag style or remote with hose*.
  • Advanced thermostat valve for constant damping at full temperature-range.
  • Modular built for endless flexibillity.
  • Fully rebuildable and fully upgradable.
Options:
  • Length-adjustment mostly +/- 5mm.
  • Choice of fixed "Piggy-Bag" or remote nitrogen neservoir.
  • Choice of materials like lightweight aluminium/titanium or strong steel/INOX.
  • Internal check-valve for completely seperated compression and rebound.
  • Can be combined with revolutionary 45mm slider STRUT-concept)*.
  • Can be combined with fully adjustable camber-plates*.
  • Can be combined with 36mm, 40mm and 46mm main piston diameter.
  • Can be combined with 14mm, 16mm, 20mm and 22mm piston-rod diameter.
Manual for 4-Way Front. Manual for 4-Way Rear.

Shipping & Lead Time: As a general rule, Intrax Suspension kits will be built to order. Lead time can run 1-4 weeks depending on schedule at time of ordering. The Kit prices located on this page include shipping from Holland to your door. If being custom built, then ignore the shipping charge the shopping cart will calculate as you will not be charged for that. We will from time to time stock specific kits as we get a feel for what the better sellers are. If in stock, then you would be paying the shipping charges from us to you as the shopping cart would calculate. Think of that as a small premium for immediate availability.

INTRAX SUSPENSION 996

"4-WAY"
"Top Off The Range, Highly Advanced Modular Mono Tube Damper"

This is a professional set and will help driver to find set-ups for all kind of conditions.

The 4-way is a top of the line product. The low-speed compression, high-speed compression and rebound damping is separately adjustable. The low-speed compression damping controls the front-rear and left-right movements of the car ("pitch" and "roll"). The high-speed compression controls the movement of the wheels over sharp bumps, like marbles and curb stones. The rebound damping controls the body movements and absorbs unwanted energies, which otherwise would unsettle the car.



Adjustable:
  • Low-speed compression damping base-adjustment.
  • Low-speed compression damping range-adjustment in 16 positions.
  • High-speed compression range-adjustment in 50 positions.
  • Rebound damping-range in 50 positions.
  • Spring-preload fully adjustable.
Other features:
  • Mono-tube damper construction.
  • Pressurised nitrogen reservoir; piggy-bag style or remote with hose*.
  • Advanced thermostat valve for constant damping at full temperature-range.
  • Modular built for endless flexibillity.
  • Fully rebuildable and fully upgradable.
Options:
  • Length-adjustment mostly +/- 5mm.
  • Choice of fixed "Piggy-Bag" or remote nitrogen neservoir.
  • Choice of materials like lightweight aluminium/titanium or strong steel/INOX.
  • Internal check-valve for completely seperated compression and rebound.
  • Can be combined with revolutionary 45mm slider STRUT-concept)*.
  • Can be combined with fully adjustable camber-plates*.
  • Can be combined with 36mm, 40mm and 46mm main piston diameter.
  • Can be combined with 14mm, 16mm, 20mm and 22mm piston-rod diameter.
Manual for 4-Way Front. Manual for 4-Way Rear.

Shipping & Lead Time: As a general rule, Intrax Suspension kits will be built to order. Lead time can run 1-4 weeks depending on schedule at time of ordering. The Kit prices located on this page include shipping from Holland to your door. If being custom built, then ignore the shipping charge the shopping cart will calculate as you will not be charged for that. We will from time to time stock specific kits as we get a feel for what the better sellers are. If in stock, then you would be paying the shipping charges from us to you as the shopping cart would calculate. Think of that as a small premium for immediate availability.

INTRAX SUSPENSION 996

"4-WAY"
"Top Off The Range, Highly Advanced Modular Mono Tube Damper"

This is a professional set and will help driver to find set-ups for all kind of conditions.

The 4-way is a top of the line product. The low-speed compression, high-speed compression and rebound damping is separately adjustable. The low-speed compression damping controls the front-rear and left-right movements of the car ("pitch" and "roll"). The high-speed compression controls the movement of the wheels over sharp bumps, like marbles and curb stones. The rebound damping controls the body movements and absorbs unwanted energies, which otherwise would unsettle the car.



Adjustable:
  • Low-speed compression damping base-adjustment.
  • Low-speed compression damping range-adjustment in 16 positions.
  • High-speed compression range-adjustment in 50 positions.
  • Rebound damping-range in 50 positions.
  • Spring-preload fully adjustable.
Other features:
  • Mono-tube damper construction.
  • Pressurised nitrogen reservoir; piggy-bag style or remote with hose*.
  • Advanced thermostat valve for constant damping at full temperature-range.
  • Modular built for endless flexibillity.
  • Fully rebuildable and fully upgradable.
Options:
  • Length-adjustment mostly +/- 5mm.
  • Choice of fixed "Piggy-Bag" or remote nitrogen neservoir.
  • Choice of materials like lightweight aluminium/titanium or strong steel/INOX.
  • Internal check-valve for completely seperated compression and rebound.
  • Can be combined with revolutionary 45mm slider STRUT-concept)*.
  • Can be combined with fully adjustable camber-plates*.
  • Can be combined with 36mm, 40mm and 46mm main piston diameter.
  • Can be combined with 14mm, 16mm, 20mm and 22mm piston-rod diameter.
Manual for 4-Way Front. Manual for 4-Way Rear.

Shipping & Lead Time: As a general rule, Intrax Suspension kits will be built to order. Lead time can run 1-4 weeks depending on schedule at time of ordering. The Kit prices located on this page include shipping from Holland to your door. If being custom built, then ignore the shipping charge the shopping cart will calculate as you will not be charged for that. We will from time to time stock specific kits as we get a feel for what the better sellers are. If in stock, then you would be paying the shipping charges from us to you as the shopping cart would calculate. Think of that as a small premium for immediate availability.
Product Image
Product Name
Pricing
Qty
INTRAX IK2 SUSPENSION KIT 996
Part# INTRAX-996-IK2

Cart Qty: None

Ship Weight: 50.00


2WD or 4WD:
$3,795.00

INTRAX 4-WAY SUSPENSION KIT 996
Part# INTRAX-996-4WAY

Cart Qty: None

Ship Weight: 50.00


$6,995.00
