FUELAB "PRODIGY" PUMP


Cart Qty: None   Ship Weight: 4.00

FUELAB "PRODIGY" FUEL PUMPS

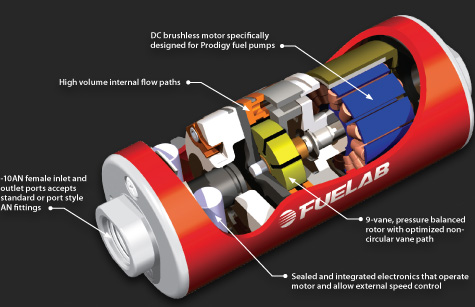

FUELAB has taken Fuel Delivery to the next level... Digital. Prodigy Fuel Pumps are the automotive aftermarket's first and only speed controllable DC brushless driven fuel pump. Fuelab's award-winning, patent pending designs offer improved durability, substantially higher efficiency, and lower current draw. With digital fuel delivery you get unheard of electro-mechanical efficiencies in a package half the size of competing pumps.

Pump Features:


  • Only in line pump compatible with gasoline, diesel, methanol, and ethanol
  • High efficiency sling vane positive displacement pump
  • Special housing shape for extremely quite operation and steady pressure
  • Carbon 9-vane construction with pressure balanced rotor for high reliability
  • Backed by a 2-year limited warranty

Motor Features:


  • Lightweight super-efficient dc brushless motor reduces current draw
  • Low mass rotor for high speed reaction to changes in speed and flow
  • Powerful high flux density Neodymium rare earth magnets
  • No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
  • Wet motor design, no dynamic shaft seals that can wear

Electronic Features:


  • Internal speed controller for variable flow operation
  • Accepts 0-5 Volt signal for speed control
  • 12 to 16 volt vehicle electrical system compatibility
  • No expensive voltage reduction/pulse width modulation controllers required
  • Continuous duty-motor speed can be adjusted for street or strip fuel demand

Construction Features:


  • Compact, lightweight design, 3 lbs, overall length 6.9", diameter 2.63"
  • Billet Aluminum Construction with anodize per MIL-A-8625, Type II
  • High quality mounting brackets included
  • Long-life, multi-fuel compatible Fluorosilicone static seals
  • Accepts standard or port style 10AN fittings

Available Colors: (click for sample)

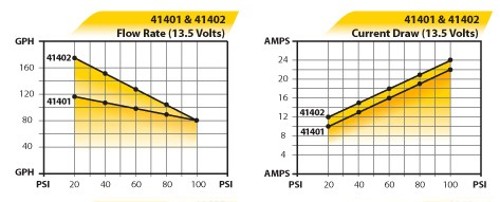

41401 High Pressure EFI In Line Fuel Pump. 105 GPH @ 45 PSI - RATED UP TO 1000HP The original digital Prodigy fuel pump, great for street, strip, or off-road use. Need more pump? 1300, 1500 and 1800 HP rated pumps available. Call for information and pricing.

FUELAB "PRODIGY" FUEL PUMPS



FUELAB has taken Fuel Delivery to the next level... Digital. Prodigy Fuel Pumps are the automotive aftermarket's first and only speed controllable DC brushless driven fuel pump. Fuelab's award-winning, patent pending designs offer improved durability, substantially higher efficiency, and lower current draw. With digital fuel delivery you get unheard of electro-mechanical efficiencies in a package half the size of competing pumps.

Pump Features:


  • Only in line pump compatible with gasoline, diesel, methanol, and ethanol
  • High efficiency sling vane positive displacement pump
  • Special housing shape for extremely quite operation and steady pressure
  • Carbon 9-vane construction with pressure balanced rotor for high reliability
  • Backed by a 2-year limited warranty

Motor Features:


  • Lightweight super-efficient dc brushless motor reduces current draw
  • Low mass rotor for high speed reaction to changes in speed and flow
  • Powerful high flux density Neodymium rare earth magnets
  • No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
  • Wet motor design, no dynamic shaft seals that can wear

Electronic Features:


  • Internal speed controller for variable flow operation
  • Accepts 0-5 Volt signal for speed control
  • 12 to 16 volt vehicle electrical system compatibility
  • No expensive voltage reduction/pulse width modulation controllers required
  • Continuous duty-motor speed can be adjusted for street or strip fuel demand

Construction Features:


  • Compact, lightweight design, 3 lbs, overall length 6.9", diameter 2.63"
  • Billet Aluminum Construction with anodize per MIL-A-8625, Type II
  • High quality mounting brackets included
  • Long-life, multi-fuel compatible Fluorosilicone static seals
  • Accepts standard or port style 10AN fittings

Available Colors: (click for sample)






41401 High Pressure EFI In Line Fuel Pump. 105 GPH @ 45 PSI - RATED UP TO 1000HP The original digital Prodigy fuel pump, great for street, strip, or off-road use. Need more pump? 1300, 1500 and 1800 HP rated pumps available. Call for information and pricing.

FUELAB "PRODIGY" FUEL PUMPS



FUELAB has taken Fuel Delivery to the next level... Digital. Prodigy Fuel Pumps are the automotive aftermarket's first and only speed controllable DC brushless driven fuel pump. Fuelab's award-winning, patent pending designs offer improved durability, substantially higher efficiency, and lower current draw. With digital fuel delivery you get unheard of electro-mechanical efficiencies in a package half the size of competing pumps.

Pump Features:


  • Only in line pump compatible with gasoline, diesel, methanol, and ethanol
  • High efficiency sling vane positive displacement pump
  • Special housing shape for extremely quite operation and steady pressure
  • Carbon 9-vane construction with pressure balanced rotor for high reliability
  • Backed by a 2-year limited warranty

Motor Features:


  • Lightweight super-efficient dc brushless motor reduces current draw
  • Low mass rotor for high speed reaction to changes in speed and flow
  • Powerful high flux density Neodymium rare earth magnets
  • No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
  • Wet motor design, no dynamic shaft seals that can wear

Electronic Features:


  • Internal speed controller for variable flow operation
  • Accepts 0-5 Volt signal for speed control
  • 12 to 16 volt vehicle electrical system compatibility
  • No expensive voltage reduction/pulse width modulation controllers required
  • Continuous duty-motor speed can be adjusted for street or strip fuel demand

Construction Features:


  • Compact, lightweight design, 3 lbs, overall length 6.9", diameter 2.63"
  • Billet Aluminum Construction with anodize per MIL-A-8625, Type II
  • High quality mounting brackets included
  • Long-life, multi-fuel compatible Fluorosilicone static seals
  • Accepts standard or port style 10AN fittings

Available Colors: (click for sample)






41401 High Pressure EFI In Line Fuel Pump. 105 GPH @ 45 PSI - RATED UP TO 1000HP The original digital Prodigy fuel pump, great for street, strip, or off-road use. Need more pump? 1300, 1500 and 1800 HP rated pumps available. Call for information and pricing.
Product Image
Product Name
Pricing
Qty
FUELAB PRODIGY FUEL PUMP
Part# FL-41401

Cart Qty: None

Ship Weight: 4.00


COLOR:
$501.75
