REPLACEMENT FUEL LINES 944T / 944
Lindsey Racing can take care of your fuel delivery needs
whether you're just wanting to replace your tired or
leaking factory fuel lines at the rail or want to
upgrade everything with the
Lindsey Racing Fuel Rail system.
These replacement fuel lines are for when you're still using the factory fuel rail. These replace the
factory fuel lines that have a tendency to leak and run the risk of fire. As the factory lines age, the rubber hardens and weathers and the factory crimp
connections become loose and leak. Unlike
other similar kits on the market, we do not rely on cheap quality hose clamp connections. Those are
not safe and should not be used. Our fuel lines tie into both the steel factory high pressure feed
and return lines with compression fittings. These bite in, metal to
metal, and do not come off. We also connect to the
damper and regulator like the factory. The
damper connection is a threaded fitting and the regulator is a clamp style like the factory.
We highly recommend installing a thermal barrier on the hoses since they are
located above the exhaust headers and subject to high temperatures. We offer
a product called Insultherm in both silver and black. It simply slides over the hoses between the fittings and gives you the thermal protection in our opinion

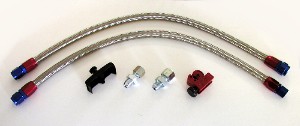

you should have. 944T / 944 STOCK REPLACEMENT LINE KIT INCLUDES:
- Braided Fuel Lines with Billet Ends.
- 10mm & 8mm to -6 JIC Steel Compression Fittings.
- Miniature Tubing Cutter
- Fuel Line clamp.
You can refer to our Tech Garage for pictures and installation
instructions as well for a complete step by step install with pictures.
FUEL LINE FINISH:
- Stainless Steel Lines w/Blue & Red Fittings
- Stainless Steel Lines w/Polished Fittings
- Black Lines w/Black Fittings
- Black Lines w/Polished Fittings

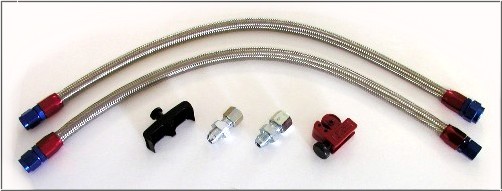

Pictured above is 944 Lines for Hose Barb type Fuel Regulator Outlet Connection.

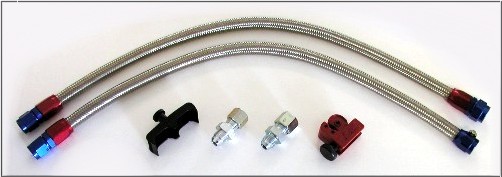

Pictured above is 944 Lines for Threaded type Fuel Regulator Outlet Connection.

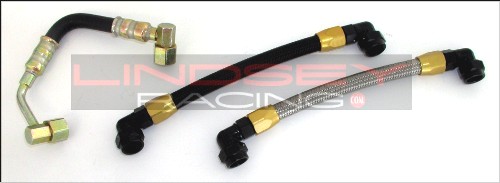

OPTIONAL "JUMPER HOSE" FUEL DAMPER TO FUEL RAIL:
- OEM PORSCHE.
- Black Braid with Black Fittings.
- Stainless Steel with Black Fittings.

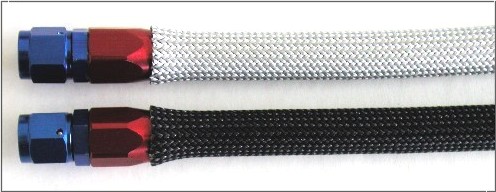

INSULTHERM:
This Thermal Insulation slips over the outside of the fuel lines and protects them from the
heat radiating off the headers and other under hood heat sources.
Select the 36" (18" x 2) option for covering both fuel lines, and the 43" if you're wanting to protect the jumper hose from the
fuel damper to fuel rail hose (7") as well.
- Silver Insultherm
- Black Insultherm
|
