SKU: JRZ-944-3

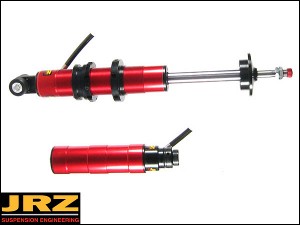

944 JRZ Triple Adjustable Damper System - JRZ9443
944 JRZ Triple Adjustable Damper System.
The triple-adjustable damper has a separate adjustment device to control the low speed compression damping forces without affecting the mid- and high-speed range. Because the large 22mm piston rod provides sufficient oil flow on very small and low-speed damper movements, the low-speed adjuster mechanism is very sensitive and responsive.
The low-speed adjuster uses a bore design in which the area can be varied. The adjuster is located on top of the remote reservoir and has eight adjustment positions. Changes made to low-speed damping forces (damper rod velocity of less than 1.5 – 2 inches per sec.) have a major effect on handling because corner entry, corner exit, braking, and power down are all about low speed piston rod movements.
